Description:

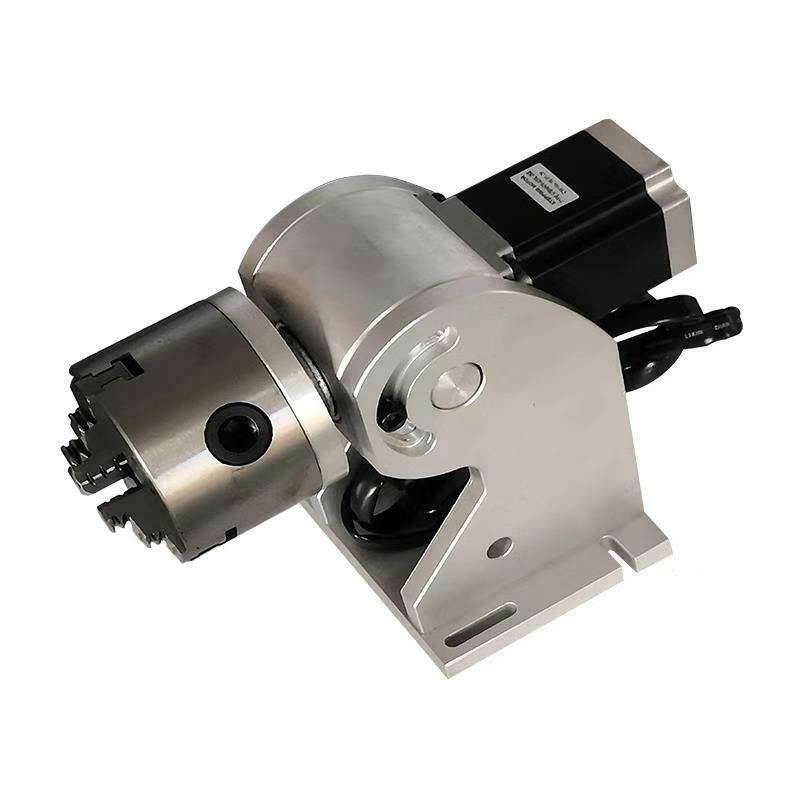

Add a new dimension to your production with the 80 mm rotary axis attachment, which allows you to mark cylindrical objects with a diameter of up to 70 mm. This laser rotation tool secures your workpieces during engraving thanks to its adjustable claws, either by clamping them inwards or pulling them outwards. Marking on the inside and outside is supported by the 180° angle-adjustable headstock. The efficient NEMA 2-phase stepper motor ensures smooth, reliable operation, whether you want to support your business, do crafts at home, or improve your industrial processing. With the included 4-pin aviation connector, you can connect this chuck rotary axis to a variety of fiber laser engraving machines and start marking rings, cans, pens, pipes, and more!


Features:
·360° rotatable marking

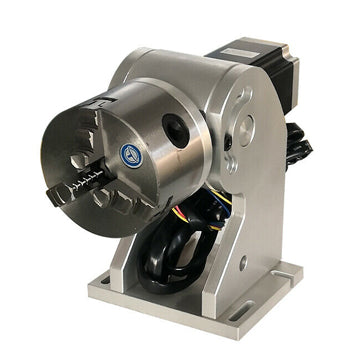

The 80 mm rotary axis with 3 jaws offers stepless angle adjustment of 180° and smooth 360° rotation for engraving around the entire inner or outer circumference of round objects, ideal for rings, bracelets, pens, cups, tubes, etc.

·Adjustable jaws

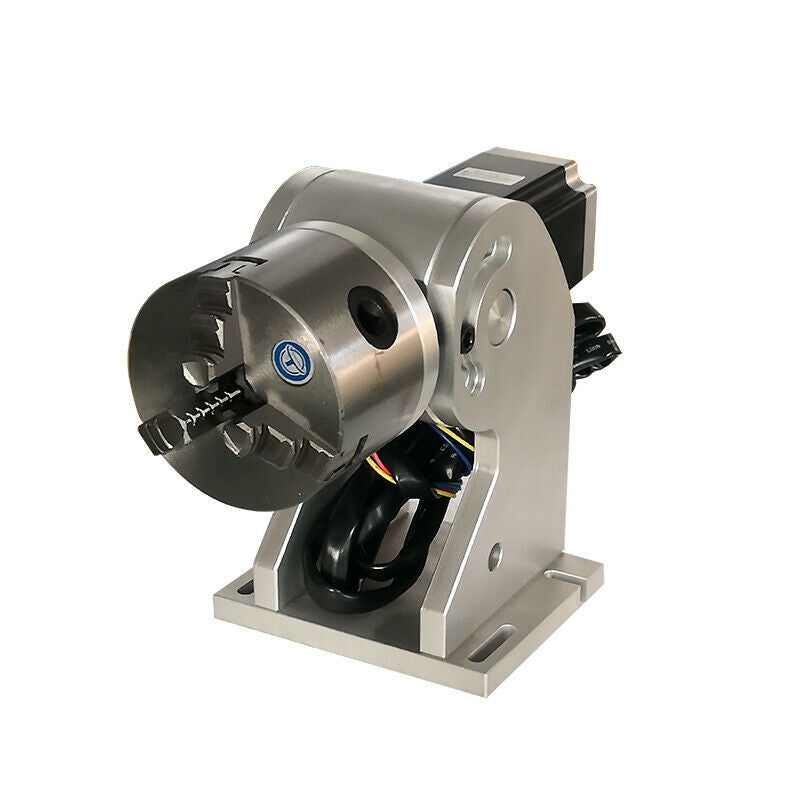

Our rotating laser marker and engraver has 6 clamping jaws and a supplied clamping key to securely hold cylinders with an outer diameter of 2-63 mm or an inner diameter of 25-70 mm.

·Easy installation
Simply connect the convenient and secure 4-pin aviation connector on the rotary tool to the corresponding port on your fiber laser machine and configure the settings in your software to begin your marking project.

·Powerful operation

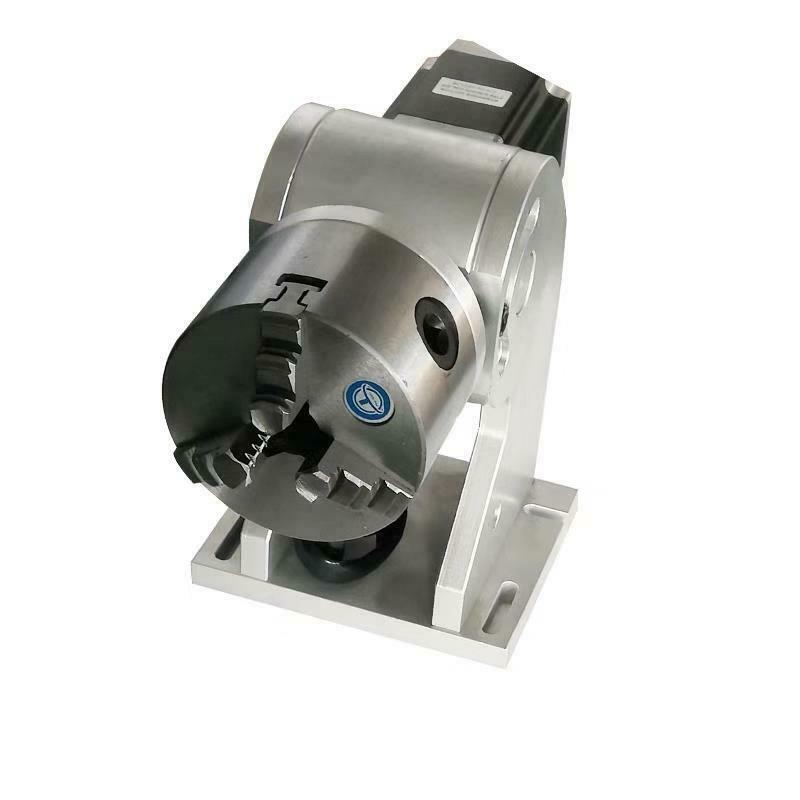

Our chuck's rotary axis is equipped with a NEMA 23 2-phase stepper motor, which enables precise positioning and smooth movement for efficient operation. The aluminum and stainless steel construction ensures lasting corrosion resistance.

·Excellent support and service
Order this rotary axis attachment today and enjoy fast shipping, a strong 1-year warranty, and always helpful customer service and technical support.

 Specification:
·  Material: aluminum, stainless steel
·  Input voltage: 24V
·  Motor type: NEMA 23 2-phase stepper motor
·  Base area: 12 x 9.5 cm
·  Chuck diameter: 8 cm
·  Slots for clamping jaws: 3
·  Jaw length: 1.7 cm
·  Spindle height: 12.5 cm
·  Max. angle adjustment: 180°
·  Max. engraving rotation: 360°
·  Inward installation: 2-63 mm
·  Outward installation: 25-70 mm
·  Compatible ring sizes: All
·  Mounting hole size: M6
·  Cable length: 1.9 m
·  Net weight: 4.8 kg
·  Packaging weight: 5.4 kg
·  Warranty: 1 year
