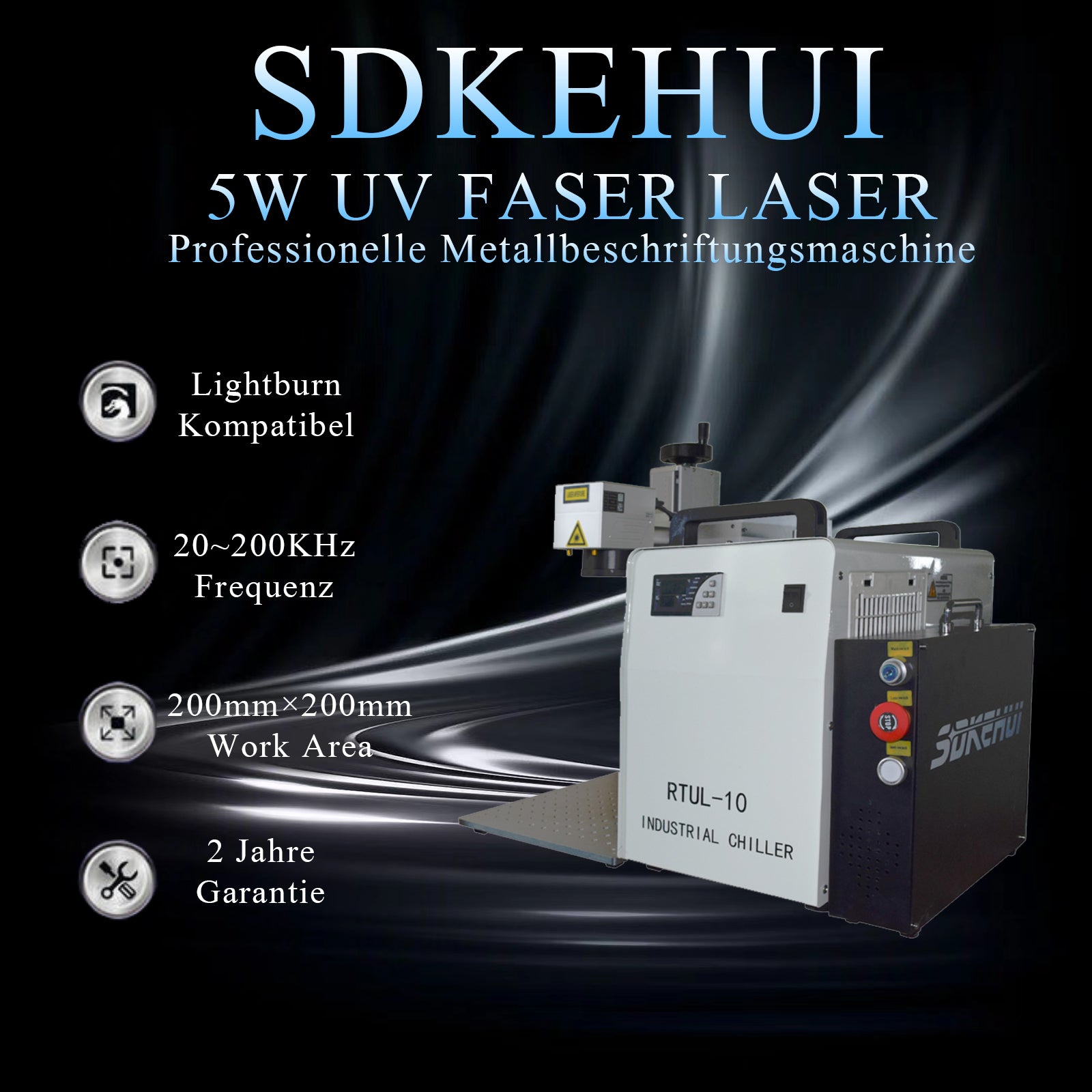

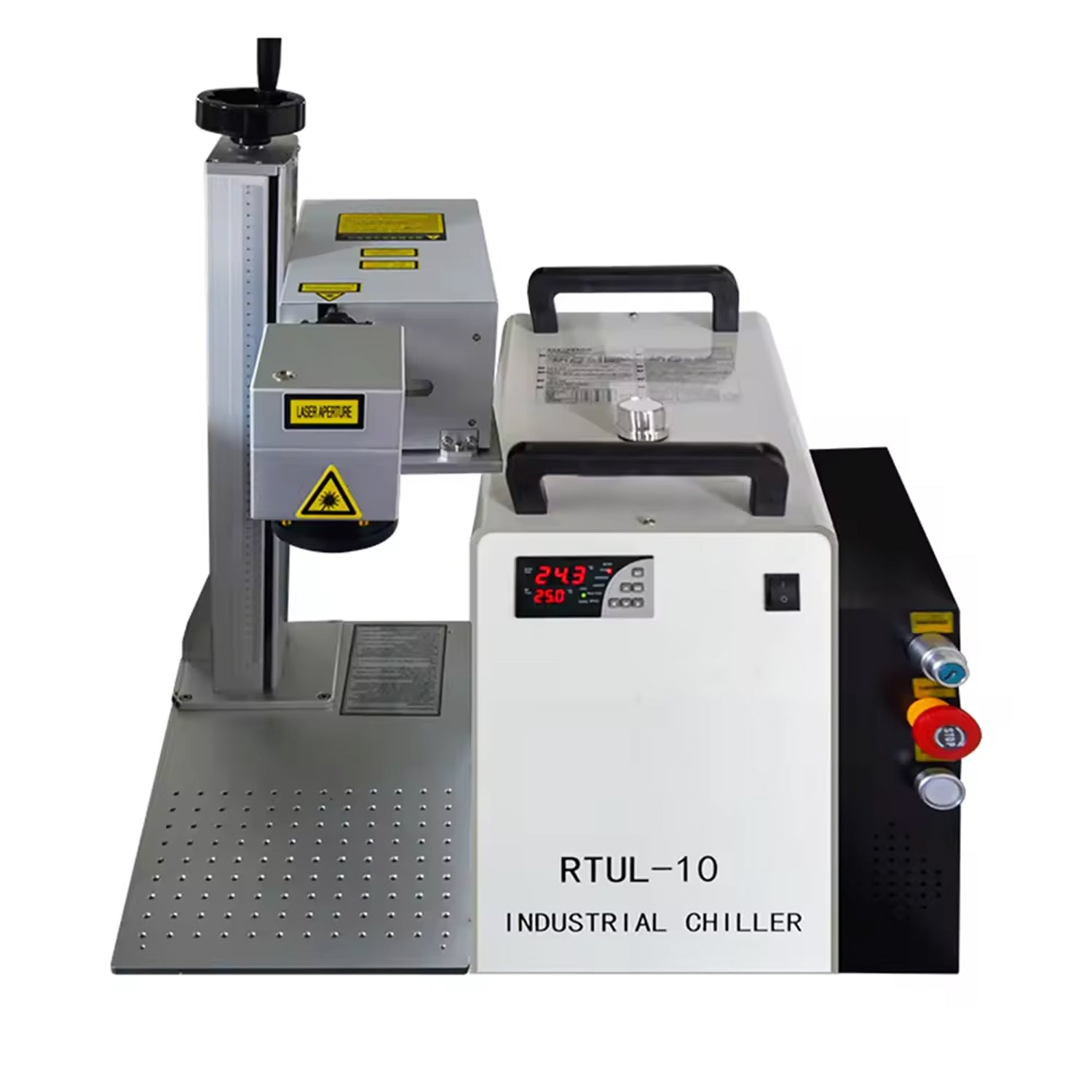

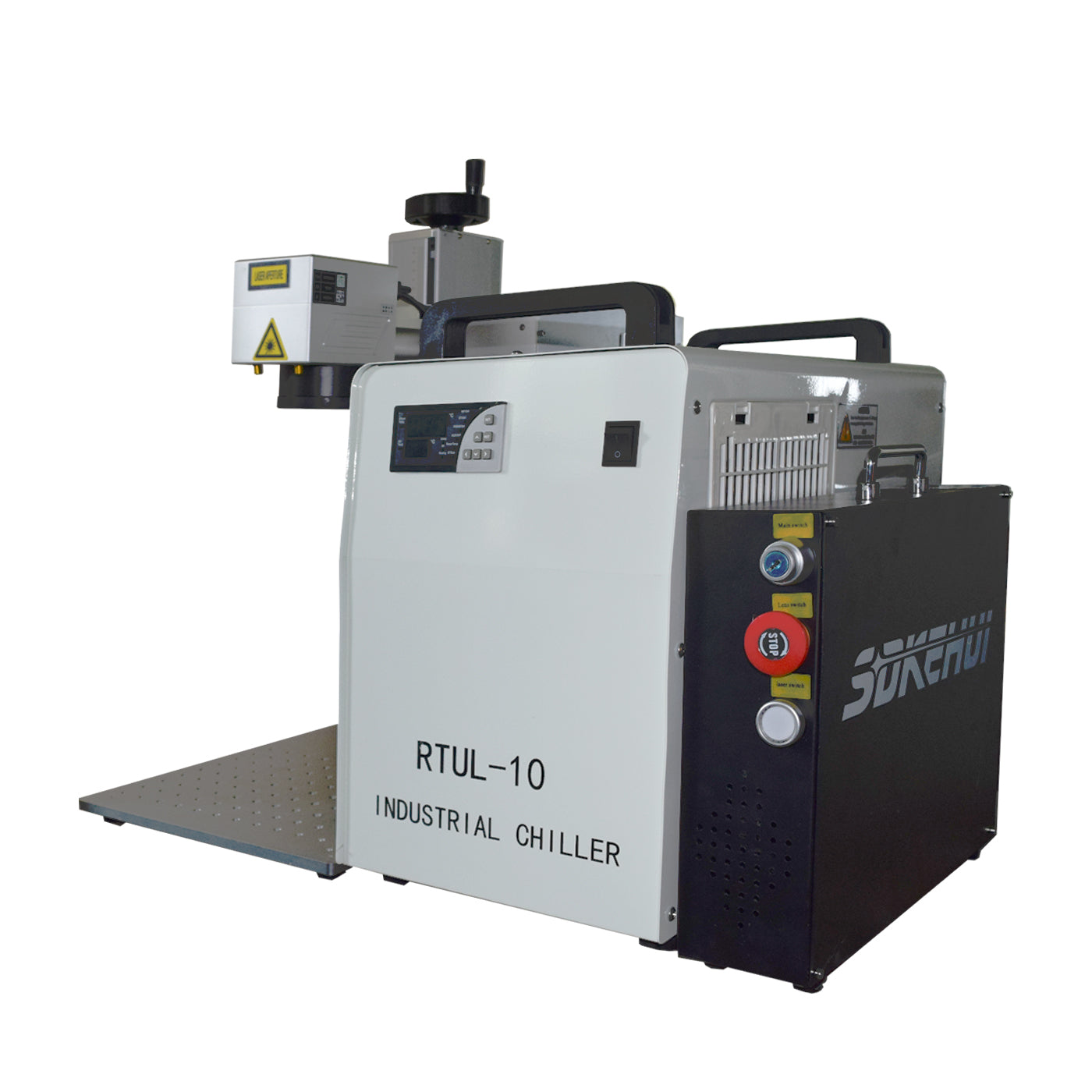

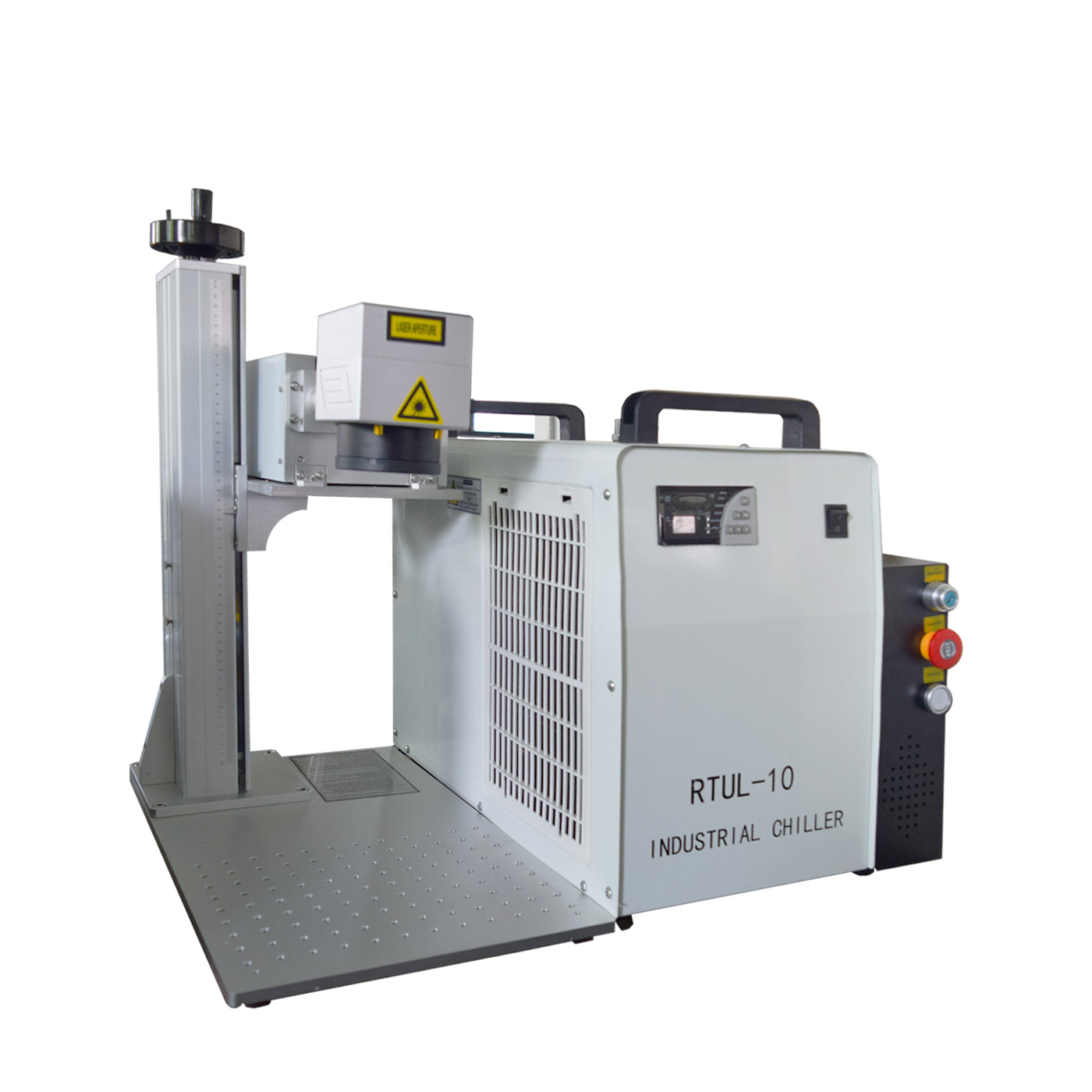

Sdkehui Logan Laser Engraver
Sdkehui Logan Laser Engraver
Regular price
$3,699.00 USD
Regular price
$4,319.00 USD
Sale price
$3,699.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Description
The ultraviolet laser marking machine quicks turnaround and perfect accuracy. Our device's state-of-the-art air-cooled logan uv laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. The Galvo galvanometric system and compact Fθ field lens ensure quick work with less than 1% distortion from your design. The built-in red dot locators allow you to precisely adjust the height of the laser arm to quickly find the exact focus for various materials. The machine is controlled by its included copy of EzCad2. A pair of laser glasses come included to protect your eyes from the 355nm beam of this laser.
Advantages of UV Laser Marking Machine:
1. Ultra-fine marking and marking of special materials possible
Due to the extremely small focus and small processing heat-affected zone, UV laser can carry out ultra-fine marking and special material marking. It is the first choice for customers who have higher requirements on marking effect.
2. Cold processing method with better effect
Ultraviolet laser processing has become cold processing, because the high-energy molecules of the ultraviolet light will need to be processed directly to the separation of molecules on the metal or non-metallic materials. However, this separation causes the molecules to separate from the material. No heat is generated in this mode of operation.
On the basis of cold processing, the results of processing products and materials will be better and better. This is because when cold laser processing is used, the probability of material impact is reduced to one percent, which reduces the advantages of processing. Get all applications.
3. The heat affected area of UV laser marking machine is extremely small, which will not produce thermal effect and will not cause the problem of material burning.
4. UV laser is mainly low power, stable performance, small size and low power consumption.
UV laser marking machine: especially suitable for the high-end market of fine processing. Such as:
1. cosmetics, pharmaceuticals, excipients and other polymer materials such as packaging bottle surface marking effect, strong cleaning force, better than inkjet coding, no pollution;.
2. Flexible pcb board marking and scribing; silicon wafer microporous, blind hole processing.
3. LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials and so on.
（Note: If in doubt about a specific material not listed, please contact us and we can process a sample to make a confirm)
FEATURES
Compare to traditional fiber laser, it Mainly uses non-metallic materials as the object of surface marking (such as: glass, plastic bags, paper packaging boxes, etc.)
Certifications - FDA Compliant, CE Certification & ISO9001 Quality Certification.
Red Dot Guidance - Visible laser pointers help make focusing quick and easy. The built-in red laser locator calibrates with the laser's scanner to allow precision work on the machine's workbed and make a preview for your pattern's outline for convenient positioning.

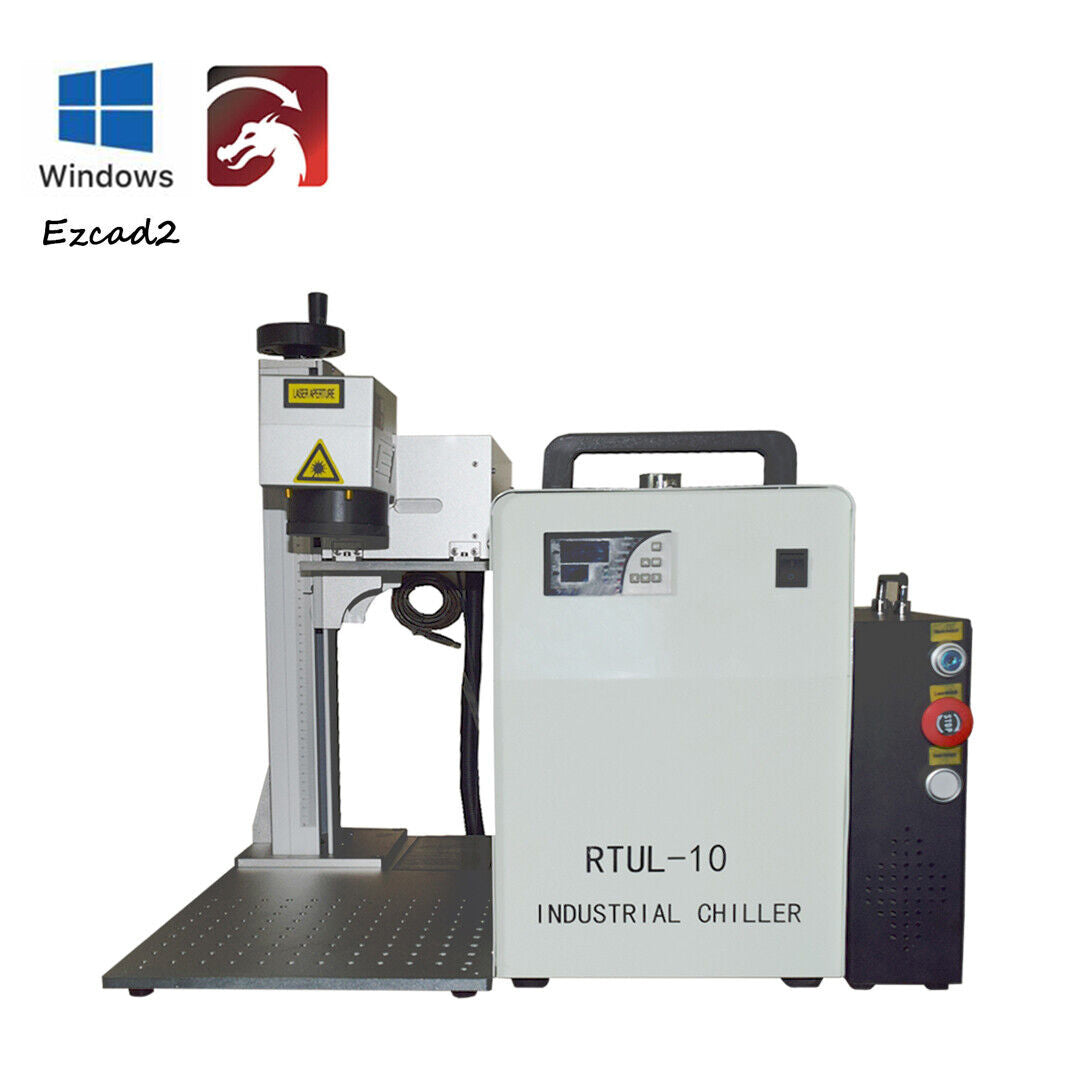

Software Support - Your UV fiber laser comes with a bundled edition of EzCad2 engraving software compatible with Windows. Users can design their graphics freely, common types of images are supported.(bmp,jpg,tga,png,tif...),common vector images are supported.
(ai,dxt,dst,plt...)
SINO-GALVO - The galvo scanner and scanning system provide both excellent accuracy and fast, stable marking of flat surfaces at speeds of up to 393.7 inches per second (10000 mm/s).
Fθ （F-theta）Field Lens - Our Fθ lens helps create vivid markings on flat surfaces, maintaining a consistent, focused spot size across its 7.9″×7.9″ (200x200 mm) working area. Producing less than 1% distortion, it flawlessly executes intricate designs with unbelievable precision.
LightBurn Compatible - Your EzCad2-based ultraviolet laser engraver works with LightBurn's latest galvo functionality on Windows, MacOS, and Linux systems to let you create even the most intricate patterns easily.
The text information marked by the uv laser marking machine is clear and permanent, and will not fade and fall off.
The beam quality is high, its diameter is 0.6-0.9mm, and the divergence angle is ＜2mrad.
High electro-optic conversion efficiency, easy to use, no optical adjustment or maintenance, compact structure, high system integration and low failure.
Easy control - The easy-to-learn dust control system is simple and clear, which is very suitable for beginners. Our safe and practical equipment can be used to meet all your engraving needs!
No maintenance, long service life, suitable for harsh environments.
Fast processing speed, 2-3 times that of traditional marking machine, optical scanning galvanometer, high laser repetition frequency, high speed and no distortion.
The equipment is applicable to the surface and internal carving of leather, glass, crystal products, marking and carving of high flame retardant materials and other surface treatment, and at the same time, it can be applied to the surface processing of most of the metal and non-metallic materials and the processing of coated films, which belongs to a kind of high-grade fine marking of the special equipment.
SPECIFICATIONS
The ultraviolet laser marking machine quicks turnaround and perfect accuracy. Our device's state-of-the-art air-cooled logan uv laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. The Galvo galvanometric system and compact Fθ field lens ensure quick work with less than 1% distortion from your design. The built-in red dot locators allow you to precisely adjust the height of the laser arm to quickly find the exact focus for various materials. The machine is controlled by its included copy of EzCad2. A pair of laser glasses come included to protect your eyes from the 355nm beam of this laser.
Advantages of UV Laser Marking Machine:
1. Ultra-fine marking and marking of special materials possible
Due to the extremely small focus and small processing heat-affected zone, UV laser can carry out ultra-fine marking and special material marking. It is the first choice for customers who have higher requirements on marking effect.
2. Cold processing method with better effect
Ultraviolet laser processing has become cold processing, because the high-energy molecules of the ultraviolet light will need to be processed directly to the separation of molecules on the metal or non-metallic materials. However, this separation causes the molecules to separate from the material. No heat is generated in this mode of operation.
On the basis of cold processing, the results of processing products and materials will be better and better. This is because when cold laser processing is used, the probability of material impact is reduced to one percent, which reduces the advantages of processing. Get all applications.
3. The heat affected area of UV laser marking machine is extremely small, which will not produce thermal effect and will not cause the problem of material burning.
4. UV laser is mainly low power, stable performance, small size and low power consumption.
UV laser marking machine: especially suitable for the high-end market of fine processing. Such as:
1. cosmetics, pharmaceuticals, excipients and other polymer materials such as packaging bottle surface marking effect, strong cleaning force, better than inkjet coding, no pollution;.
2. Flexible pcb board marking and scribing; silicon wafer microporous, blind hole processing.
3. LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials and so on.
（Note: If in doubt about a specific material not listed, please contact us and we can process a sample to make a confirm)
FEATURES
Compare to traditional fiber laser, it Mainly uses non-metallic materials as the object of surface marking (such as: glass, plastic bags, paper packaging boxes, etc.)
Certifications - FDA Compliant, CE Certification & ISO9001 Quality Certification.
Red Dot Guidance - Visible laser pointers help make focusing quick and easy. The built-in red laser locator calibrates with the laser's scanner to allow precision work on the machine's workbed and make a preview for your pattern's outline for convenient positioning.
Software Support - Your UV fiber laser comes with a bundled edition of EzCad2 engraving software compatible with Windows. Users can design their graphics freely, common types of images are supported.(bmp,jpg,tga,png,tif...),common vector images are supported.
(ai,dxt,dst,plt...)
SINO-GALVO - The galvo scanner and scanning system provide both excellent accuracy and fast, stable marking of flat surfaces at speeds of up to 393.7 inches per second (10000 mm/s).
Fθ （F-theta）Field Lens - Our Fθ lens helps create vivid markings on flat surfaces, maintaining a consistent, focused spot size across its 7.9″×7.9″ (200x200 mm) working area. Producing less than 1% distortion, it flawlessly executes intricate designs with unbelievable precision.
LightBurn Compatible - Your EzCad2-based ultraviolet laser engraver works with LightBurn's latest galvo functionality on Windows, MacOS, and Linux systems to let you create even the most intricate patterns easily.
The text information marked by the uv laser marking machine is clear and permanent, and will not fade and fall off.
The beam quality is high, its diameter is 0.6-0.9mm, and the divergence angle is ＜2mrad.
High electro-optic conversion efficiency, easy to use, no optical adjustment or maintenance, compact structure, high system integration and low failure.
Easy control - The easy-to-learn dust control system is simple and clear, which is very suitable for beginners. Our safe and practical equipment can be used to meet all your engraving needs!
No maintenance, long service life, suitable for harsh environments.
Fast processing speed, 2-3 times that of traditional marking machine, optical scanning galvanometer, high laser repetition frequency, high speed and no distortion.
The equipment is applicable to the surface and internal carving of leather, glass, crystal products, marking and carving of high flame retardant materials and other surface treatment, and at the same time, it can be applied to the surface processing of most of the metal and non-metallic materials and the processing of coated films, which belongs to a kind of high-grade fine marking of the special equipment.
SPECIFICATIONS
| Laser brand | Logan |
| Laser type |
Integrated nanosecond ultraviolet solid-state laser |
| controller brand | JCZ |
| Environment in which computer software runs |
Windows |
|
Compatible software |
Lightburn |
|
Transfer of system data |
USB |
| Product function |
Mainly use non-metallic materials as the subject of surface marking (e.g., glass, plastic bags, paper packaging cartons, etc.) |
|
output laser power |
≥5W@30kHz |
| divergence angle | ＜2 mrad |
|
pulse repetition rate |
20kHz-200kHz |
| warranty | 3 years |
|
pulse width |
Less than 12 ns |
|
pulse stability |
≤3% |
|
Stability of performance |
≤3% |
|
Central wavelength |
355nm |
|
Diameter of the beam |
0.6–0.9 mm |
|
Selective roundness |
≥90% |
|
cooling mode |
Water cooling |
|
preheating time |
＜15 min |
|
Operating capacity of the devices |
≤800W |
|
scanning speed |
＜10000mm/s |
|
Operating temperature range of the laser |
18-35°C |
|
file format |
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc. |
|
Input voltage |
AC 220V/50Hz AC 110V/60Hz |
|
Input current |
10A |
|
Engraving Area |
200X200mm 300X300mm |
