SDKEHUI 30W laser engraving machine White all-in-one fibre laser marking machine 15x15cm
SDKEHUI 30W laser engraving machine White all-in-one fibre laser marking machine 15x15cm
Regular price
$1,799.00 USD
Regular price
$1,999.00 USD
Sale price
$1,799.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Description:
This fiber laser marker can be used for many different engraving projects. The improved optics include a Galyo lens for increased marking speed and high-precision engraving. It comes with a ruler and a field lens for the most accurate markings. The large table can accommodate a variety of products, making your next engraving project easier than ever. Lifting wheels allow you to adjust the height. A foot switch improves control. Compatible with a variety of metallic and non-metallic materials, suitable for high-melting and brittle objects.
Features:
1. The marking software is powerful, compatible with Coreldraw, AutoCAD, and other software files;
2. Supports PLT, PCX, DXF, BMP, etc., can directly use SHX, TTF font support;
3. Automatic coding, print serial number, batch number, date, barcode, QR code, automatic jump number, USB interface output control.
4. Easy control - The easy-to-learn dust control system is simple and clear, which is very suitable for beginners. Our safe and practical equipment can be used to meet all your engraving needs!
5. Shaft interface - Connect the rotating shaft directly to mark round objects such as wine glasses or cups. Align the objects on the axis and perform the next engraving! (Without rotation axis)
6. Adjustable - Use the stroke wheel to adjust the galvanometer system and achieve the most accurate engraving. Our equipment can easily realize your vision!
The main tasks of the fiber laser marking machine are:
1. Vaporize the surface of the target material using laser energy and expose the deep material;
2. The laser energy causes chemical and physical changes in the surface material, “engraving” the desired text;
3. The material is burned by the laser energy to display the desired etching pattern and text.
The fiber laser marking machine mainly consists of a fiber laser, oscillating mirror (warhead), software control board, industrial control computer, chassis, cabinet, horizontal workbench, and so on.
The function is as follows:
1. Fiber laser marking machine uses fiber laser with a service life of up to 100,000 hours, and its performance is better than that of the world's top-ranked ones.
2. The beam quality is high, the mode is TEM00, the focus diameter is less than 20 µm, and the divergence angle is 1/4. Single-line semiconductor pump lasers are more sophisticated, especially for fine and precise markings.
3. Small, low power consumption, less than 500 W power consumption; built-in air-cooled cooling mode, heavy water cooling unit, small footprint, more convenient installation, truly energy-saving, portable.
4. High electro-optical conversion efficiency, easy to operate, no optical adjustment or maintenance, compact structure, high system integration, and low failure rate.
5. No maintenance, long service life, suitable for harsh environments.
6. Fast processing speed, 2-3 times higher than conventional marking machines, optical scanning galvanometer, high laser repetition frequency, high speed, and no distortion

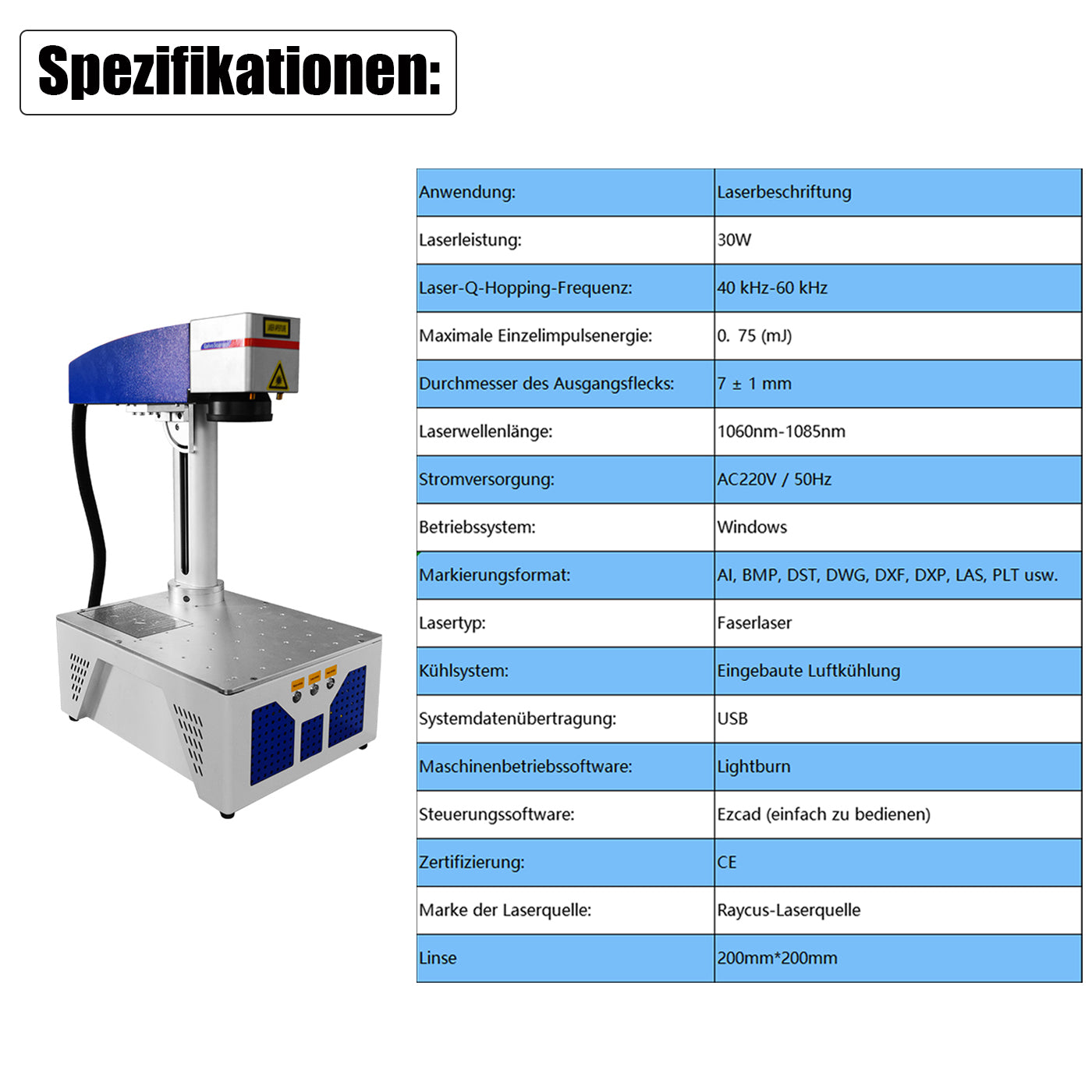

Technical data:
1.Application: Laser marking
2.Laser power: 30W
3.Stroke range of fiber laser module: 100,000 hours
4.Light beam quality: M2 <1.6
5.Laser Q-hopping frequency: 40 kHz-60 kHz
6.Maximum single pulse energy: 0.75 (mJ)
7.Marking line speed: ≤10000 mm/s
8.Minimum line width: 0.01 mm
9.Minimum character size: 0.15 mm (depending on material)
10.Marking depth: ≤ 1 mm (adjustable, depending on materials)
11.Repeatability: ±0.0001 mm
12.Output spot diameter: 7 ± 1 mm
13.Laser output power: 10% ~ 100% continuously adjustable
14.Laser wavelength: 1060nm-1085nm
15.Power supply: AC220V/50Hz
16.Operating system: Windows
17.Marking format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc.
18.Laser type: Fiber laser
19.Item condition: New
20.Cooling system: Built-in air cooling
21.System data transfer: USB
22.Machine operating software: Lightburn
23.Control software: Ezcad (easy to use)
24.Certification: CE
25.Laser source brand: Raycus laser source
26.Package: Wooden box
27.Key selling points: Easy to use
28.Rotation axis: Optional
29.Lens: 150mm*150mm
30.Warranty on core components: 2 years
31.Application industry: Metallic materials and some non-metallic materials, electronic components, integrated circuit separation modules, electrical circuit hardware, plastic keys for auto parts, etc.
32.The above parameters are laboratory test results and are subject to actual operating conditions.

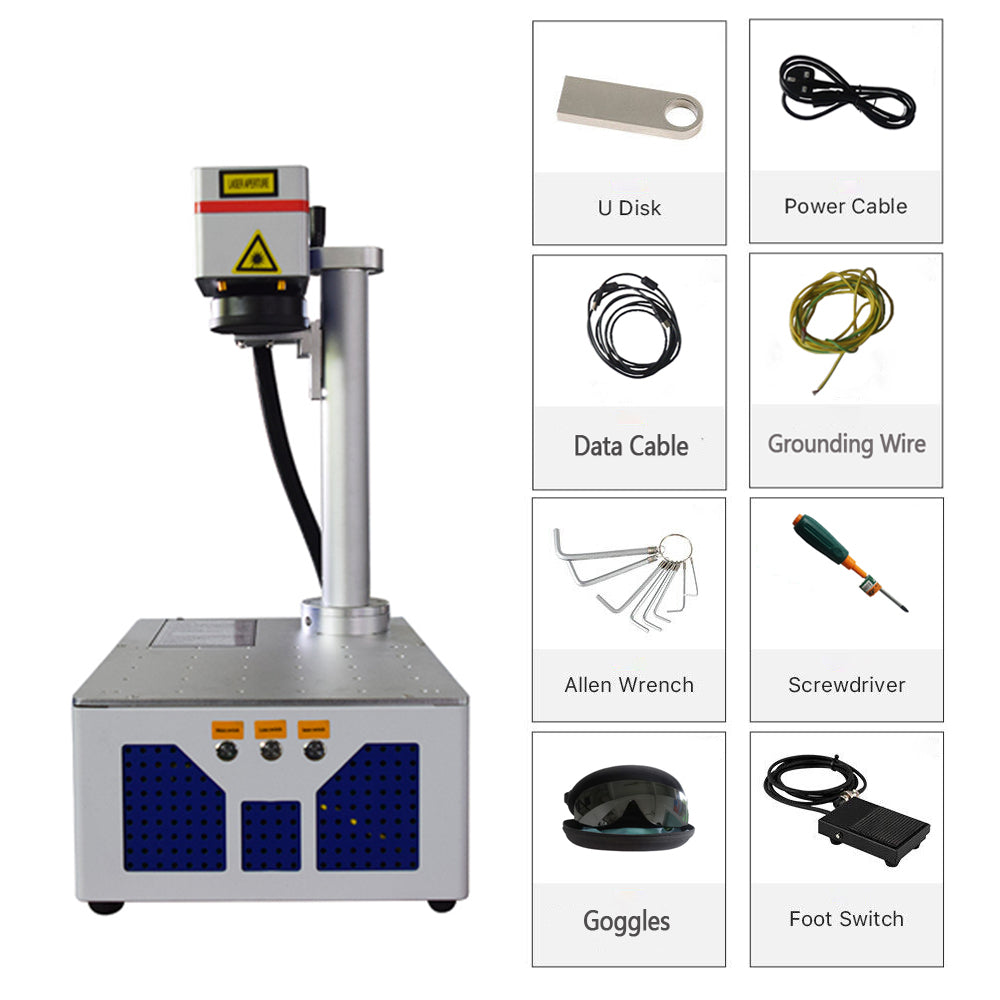

Scope of delivery:
① Laser marking machine
② Safety glasses
③ Foot switch
④ Monitor stand
⑤ Maintenance tool
⑥ Instruction manual
⑦ U-hard disk
⑧ Positioning tool
⑨ Power input cable
⑩ Data transmission cable
⑪ Grounding cable
